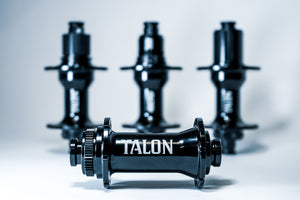

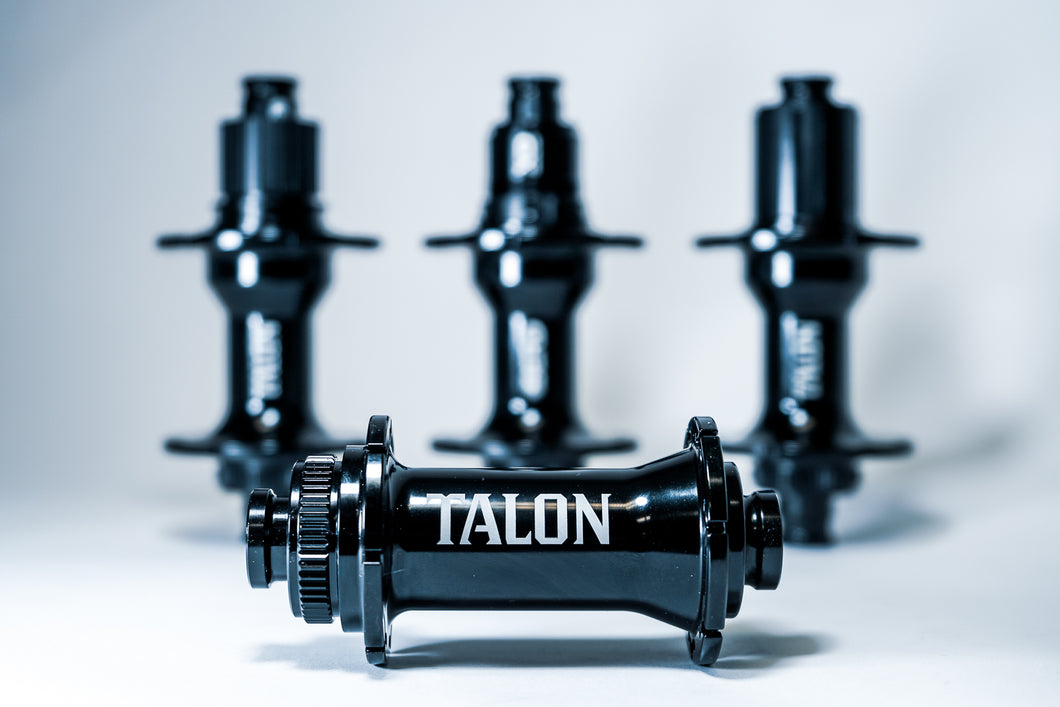

 Introducing the Berd TALON Super Boost Hubs!

The new TALON hubs were developed by Berd without compromise to create the highest-performing and most durable hubs using the hook flange interface, designed specifically for use with Berd spokes. The TALON hubs are now available in boost spacing for mountain bikes with a dual-sprung ratchet freehub.

The Berd TALON hubs feature a proprietary Hook Flange for quick lacing and a clean spoke interface with no additional hub preparation needed. The TALON hubs also include removable end caps for easy serviceability, centerlock brake mounts, and a durable black anodized finish. The dual-sprung 54 tooth ratchet mechanism is designed to be easy to service and offers excellent reliability.

Technical Specifications:

Front Hub Weight: 156 g
Rear Hub Weight: 306 g (XD); 308 g (Microspline); 316 g (HG)
Hub Dimensions: 15 x 110 Front, 12 x 157 Rear
Spoke Count: 28 (front & rear)
Freehub Mechanism: Dual-sprung 54 Tooth Ratchet Mechanism
Disc Brake Type: Centerlock
Front Hub Dimensions: Pitch Circle: 44 mm (left), 44 mm (right)
Center to Flange: 28 mm (left), 40 mm (right)
Rear Hub Dimensions: Pitch Circle: 60 mm (left), 64 mm (right)
Center to Flange: 46.75 mm (left), 27.3 mm (right)
Spoke Lengths: Use the Berd Spoke Calculator with “Berd Hook Flange” button selected and hub dimensions above



Bearing Information:

Front Hub Bearings  Left Side:
 Right Side:
 6902
 6902
Rear Hub Bearings   Left Side:
 Right Side:
 6902
 6903
Microspline Freehub Bearings:  Outboard:
 Inboard:
 6802
 15248
SRAM XD Freehub Bearings:  Outboard:
 Inboard:
 15267
 15248
Shimano HG Freehub Bearings:  Outboard:
 Inboard:
 6902
 6902



 TALON Warranty Information & Service Manual
